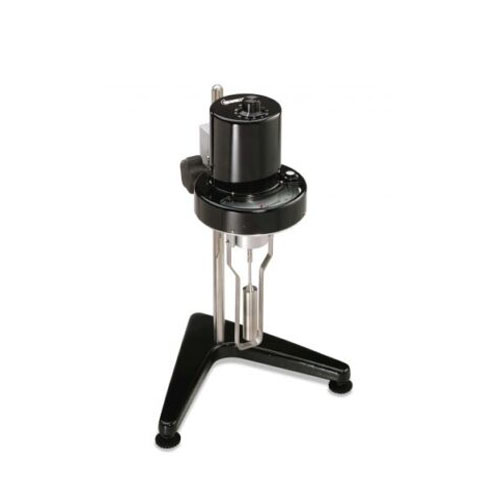

Dial reading viscometer ESMC, Brookfield, USA

The original Brookfield Dial Reading Viscometer is the lab standard used around the world.

Now it’s improved with a multi-speed electronic drive and ergonomically designed speed control knob. Quickly select any one of 10 pre-set speeds (8 speeds on LVT models). This new direct-drive design means extremely quiet operation and greater versatility. The new Universal Power Supply facilitates the use of worldwide power sources.

FEATURES & BENEFITS

• Continuous torque sensing capability
• Torque measurement accuracy: 1% of full scale range
• Repeatability: 0.2% of full scale range
• Easy speed adjustment and on/off control
• Compatible with all Brookfield accessories
• NIST traceable viscosity standards available
• Electronic drive means quiet, reliable operation
• Universal power supply worldwide compatibility
• 2-Year limited warranty
• Traditional Brookfield quality
• Explosion-proof model is available. Call for details.

SPRING TORQUE

Each of our standard Laboratory Viscometers/ Rheometers are supplied with an internal spring used to calculate the viscosity of a material. These springs have different measuring capabilities:

• LV is for low viscosity materials and can measure the “thinnest” materials. Typical examples include inks, oils, and solvents.
• RV is for medium viscosity materials than those measured with an LV torque. Typical examples include creams, food, and paints.
• HA is for higher viscosity materials than those measured with an RV torque. Typical examples include gels, chocolate and epoxies.
• HB is for even higher viscosity materials than those measured with an HA torque spring. Typical examples include asphalt, caulking compounds, and molasses.

Additional special springs are also available upon request.

• The Worldwide: Standard Viscometer,
• Electronic Drive: means quiet, reliable operation,
• Easy-to-Select Speeds,
• Analog display: -Shows % Torque, -Use Factor Finder to convertreading to centipoinse,
• Simple-to-use: Easy setup.
• Viscosity range (mPas): 100 to BM,
• Speed: .5 – 100rpm,
• Number of increments: 10.
• Accuracy: +1,0% of range,
• !0.2%,
• The instrument comes with 6 spindles, spindle guard leg, Lab Stand(Model S), carring case.

5000cP: Silicone Fluids, Nominal Viscosity 5000 cP.

BKR-6000ML: Beaker, 600ml, B.E.L. LOGO
