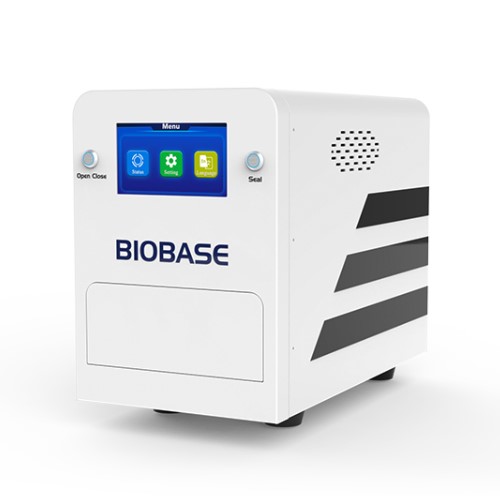

Automatic Sealing and Capping Machine
  • Model: BH-FM01
  • Brand: BIOBASE
  • Product origin: CHINA

Introduction:
BH-FM01 seals various special membranes on various microplates (PCR plates, nucleic acid extraction plates, enzyme-labeled plates, etc.) by means of heat sealing, in order to prevent evaporation, leakage and cross-contamination of reagents during testing or transportation.

Application:

Widely used in bio-medicine, inspection institutions, hospitals, reagent manufacturers, universities and other places.

Features

  • 4.3-inch touch screen, easy to operate.
  • Real-time observation of the operating state of the instrument, can be used as a single machine.
  • Customize the sealing temperature as required.
  • Complete the whole process automatically, with stable results and good repeatability.* Suitable for a variety of heat sealing films.
  • Multifunctional limit column to prevent heat seal film offset.
  • With emergency stop function and standby function.

Technical Parameter:

Model BH-FM01
Temp. Range RT~210℃
Temp. Precision ±1℃
Heating Rate Heat to 170 ℃ in 240 seconds
Cooling Keep When sealing the film, the heating body drops temperature :≤3℃, and rises to the preset temperature within 20s.
Sealing Membrane Time 0.1~15s
Film Sealing Time Accuracy 0.1s
Pressure Level 1~5 level can be set, multi-level adjustable
Plate Type
  • Deep well plate, PCR plate, ELISA plate, etc.
  • Standard: PCR plate adapter
  • Optional: ELISA plate adapter, 384 well plate adapter
Consumption 400W
Power Supply
  • Standard: 220V 50/60Hz
  • Optional: 110V 50/60Hz
External Size 325*176*262mm
Package Size 530*230*290mm
Net/Gross Weight 10.5/11.5kg

Images are reference only. Actual product may be different.
