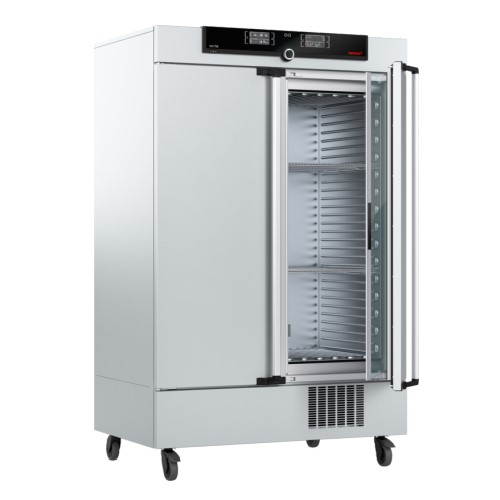

Climate Chamber, ICH750eco, 749 L, ESMC, Memmert, Germany

Climate Chamber, ICH750eco, 749 L, ESMC, Memmert, Germany

3,000,000.00৳

Climate Chamber, ICH750, Memmert, Germany
  • Model: ICH750eco
  • Volume: 749 L
  • Manufacturer: Memmert
  • Country of Origin: Federal Republic of Germany

ICH750eco, 749 L Climate Chambers

Humidity controlled climate chambers allow testing the stability of pharmaceuticals, cosmetics and food substances in accordance with international standards of the pharmaceutical, cosmetics and food industries.
The outer body of the chamber is made of textured stainless steel, the inner part is made of stainless steel (ASTM 304). Fully insulated stainless steel external doors have a 2-point locking system, internal glass doors allow samples to be observed without disturbing the atmosphere in the chamber. Lockable wheels allow you to move the cabinet and fix it in a new place. The equipment is equipped with an environmentally friendly refrigeration compressor with climate-neutral CO2 refrigerant.

Description

The Memmert ICH750ECO climate chamber has a capacity of 26.4 Cu Ft (749 L) with a temperature range of -10° to 60°C and comes with dual digital display controllers with programmaning. These environmentally friendly stability testing chambers operate with climate-friendly CO2 (R744) refrigerant. Powerful and climate-friendly at the same time, they are especially designed for testing pharmaceuticals according to ICH, Q1A and Q1B (option 2) as well as for testing the stability of cosmetics and foodstuffs. Temperature and humidity are distributed homogeneously and stable throughout the interior.

  • Stainless steel interior
  • Digital PID-microprocessor controller with 2 high-definition TFT-color displays with programmability
  • Timer: Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
  • Environmentally friendly CO2refrigerant
  • Humidity controls
  • 2 year warranty
Technical Specifications:
Volume approx. 26.4 Cu Ft (749 L)
Temperature range +10°C to +60°C (with humidity)
-10°C to +60°C (without humidity)
(not suitable for long-term storing at sub-zero temperatures. During permanent operation, the glass door may ice over.)
Setting temperature range -10°C to +60°C
Setting accuracy °C 0.1°C
Humidity setting range 10 to 80% rh
Humidity setting accuracy 0.5% rh
Contoller TwinDISPLAY: dual TFT color touchscreens, manage data, save log files, monitor up to 32 devices online, automatic alarms emailed, archive of ramps and program sequences, real-time view of program sequences, Loops can be inserted within a temperature contol program at any place, download and manage programs via Ethernet or USB
Interfaces Ethernet and USB
Housing Textured stainless steel, rear zinc-plated steel, TFT color display with touchscreen, inside glass door, fully insulated stainless steel door
Interior Stainless steel (ASTM 304) with all-round deep-drawn
Door Outside stainless steel, fully insulated, inside glass doors
Convection Forced ventilation by fan
Includes Entry port (silicone), 40 mm clear diameter, moisture tight, can be closed by silicone stopper, standard position at the back
Water tank including connection hose
Chamber Dimensions (W x H x D) 40.9 x 47.2 x 23.6 inches (1040 x 1200 x 600 mm)
Maximum number of grids/shelves 14 (2 included)
Maximum loading per grid/shelf 66 lbs (30 kg)
Maximum loading of chamber 441 lbs (200 kg)
Maximum loading per slide-in drip tray 17.6 lbs (8 kg)
Maximum loading per bottom drip tray 17.6 lbs (8 kg)
Exterior Dimensions (W x H x D) 48.2 x 67.7 x 29.7 inches (1224 x 1720 x 755 mm)
Standard works calibration certificate
(measuring point chamber center)		 +10°C, +37°C and 30°C/60% rh
Electrical 115 V, 50/60 Hz, 1200 Watts (230 V available)
Net weight approx. 560 lbs (254 kg)
Gross weight (packed in carton) approx. 714.3 lbs (324 kg)
Shipping Dimensions (W x H x D) 52.4 x 84.6 x 41.3 inches (1330 x 2150 x 1050 mm)

Images are reference only. Actual product may be different.
