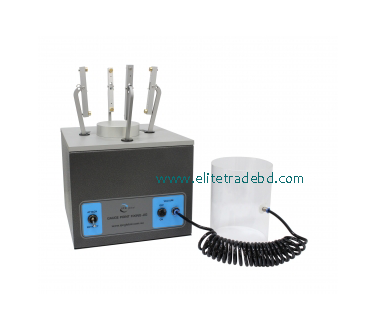

Gauge Point fixing jig

Main Feature

• Pneumatically operated
• Accurate alignment of gauge points every time
• Specially designed to be used for AMPT sample preparation
• 180 °, 120 ° or 90 ° apart with 70 mm or 100 mm spacing
• Quickly and easily change between dual, tri or quad arm gluing
• Optional gauge point setting heads to suit and wide range of test standards
• Built-in vacuum generator for easy application of membranes

Technical Specification

• Size (hxwxd): 400 x 255 x 255 mm
• Weight: 7 kg
• Air supply: 350 – 700 kPa (negligible flow)
