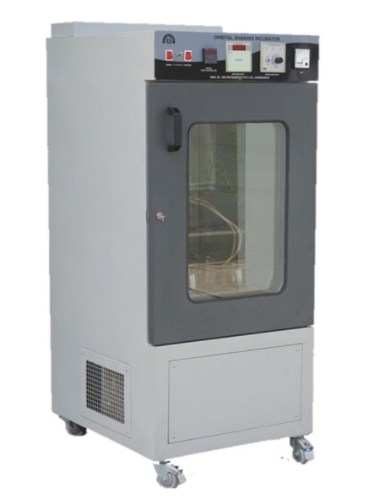

Orbital shaking incubator _EIE – 203

#Orbital shaking incubator _EIE – 203

Standard Model (EIE – 203DP)

Inner Chamber made of mirror Polished Stainless Steel (S.S.304) material & Outer body with CRC Sheet powder coated in attractive shades

GMP Model (EIE – 203DG)

Most ideal for precise temperature control and simultaneous shaking applications required in fermentations studies, enzyme reaction s, life sciences, tissue culture and biotechnology, research labs.

Applications

Used for Media Preparation & Culture growth at temperatures of 22.5°C (±2.5°C) & 32.5°C (± 2.5°C) in Microbiology or ARD labs across the world.

Salient Features

• Thermal Insulation : PUF insulation
• Insulation thickness : 70 mm
• Temperature Range : 5 °C to 60 °C
• Illumination : Fluorescent Tube light
• Fluorescent light watts : 11 Watts
• Heating source : U-shaped S.S. Tubular heaters
• Refrigeration : CFC free EMERSON compressor utilizing R-134a eco friendly refrigerant
• Observation : Inner transparent acrylic door for quick viewing and retrieval
• Door lock : Ergonomic and secured key lockable door lock
• Shaking : Achieved by PMDC motor with DC Drive
• Motor RPM : 50 – 250 RPM (Shaking speed)
• Motor speed display : Digital RPM Indicator (Shaking speed display)
• Speed control : By Rotary Potentiometer
• Feet on : Castor wheels (For easy mobility)
• Electrical : 230 Volt, 15A, 50 Hz, AC Supply
• Interchangeable S.S. tray with spring loaded S.S. Lotus clamps for holding Erlenmeyer flasks.
• Supplied complete with Calibration certificate , IQ-OQ-PQ Documents and test report
• Calibration certificate with NPL Traceability for temperature sensor and Digital controller

Air Circulation

Temperature is maintained by a quiet running blower for better air circulation throughout the chamber. Forced air circulated vertically down and re-circulated throughout the chamber for uniform temperature distribution.

Heating & Cooling System

Long lasting U-Shaped tubular heaters used as heating element. Hermetically sealed compressor CFC free compressor (134 A gas) coupled with evaporation coil and condenser.

Safety Features

• High temperature safety cut off (Thermostat)
• Electrical overload cut off (Fuse 10 Amp)
• Time delay for compressor switch ON

Technical Specifications

D: Digital P: Powder coating G: GMP

Note: Custom sizes for accommodation of different capacity flasks are also available.

Optional accessories at extra cost

• 21-CFR Compliance software with PC Communication
• Highly advanced HMI & PLC Control system
• GSM Alert through SIM Card
• Data logger with 4 temperature sensors
• Spare PT-100 Sensor for validation purpose
• Standby Refrigeration System

On-Site Validation (mapping) for 24 hours on Empty, Half and Full load condition
