Refrigerant Leak Detector, REED C-380

Refrigerant Leak Detector, REED C-380

0.00৳

Tricolor LED bar indicator with high and low sensitivity functions.

REED C-380 Offers

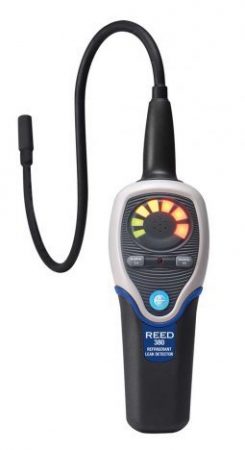

This refrigerant leak detector is capable of pinpointing small leaks quickly and accurately with audible and visual indicators. The C-380 requires no field calibration, measures CFC, HCFC and HFC refrigerants and has a battery life of approximately 40 hours (alkaline battery).

Features

  • Detects all CFCs, HFCs, and HCFCs
  • Quick response and high accuracy detects small leaks
  • 15″ (390mm) gooseneck for hard to reach areas
  • Designed for one-handed operation
  • User adjustable sensitivity (High/Low)
  • Tricolor visual indicator
  • Audible (buzzer) and visual (LED) alarm indicators
  • Low battery indicator and auto shut off
  • User replaceable sensor

REED C-380 Specifications

Detected Gases CFC’s: R11, R12, R13
HCFC’s: R22, R502, R500
HFC’s: R134a, R123, R125, R23, R404A, R407C, R410A and other halogen based compounds
Sensitivity R22, 134A:  6g/year(H), 30g/year(L)
R404A, 407C, 410A: 8g/year(H), 40g/year(L)
General Specifications
Sensor Type Advanced ionization detector
Display Tricolor LED bar indicator
Alarm Audible (buzzer) and Visual (bar indicator)
Sensitivity Settings Low and High
Warm-up Time 10 seconds
Response Time Less than 1 second
Auto Shut-off Yes (after 10 mins)
Low Battery Indicator Yes
Power Supply 4 AA batteries
Battery Life Approx. 40 hours
Product Certifications CE, RoHS
Probe Length 15″ (390mm)
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature 14 to 140°F (-10 to 60°C)
Operating Humidity Range 10-70%
Dimensions 8.5 x 2.6 x 2.2″ (217 x 66 x 56mm)
Weight 9.3 oz (265g)

Ideal Applications for the REED C-380

  • Testing residential and commercial refrigeration systems.
  • Automotive air conditioning troubleshooting.

Included with the REED C-380

  • Refrigerant Leak Detector
  • Reference Leak Source
  • Batteries
  • Hard Carrying Case
