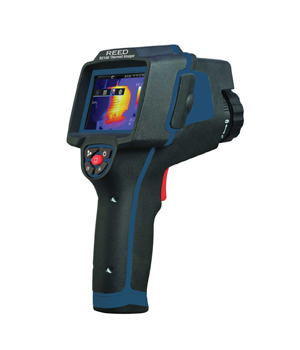

Thermal Imaging Camera, R2100

Thermal Imaging Camera, R2100

0.00৳

4 image modes (infrared/visual camera/infrared overlay/picture in picture), choice of 6 color palettes.

REED R2100 Offers

This thermal imaging camera features a 160 x 120 (19,200 pixels) infrared sensor that can detect temperatures between -4 to 752°F (0 and 400°C). The R2100 is capable of displaying thermal and visual images on a 3.5″ color TFT LCD touchscreen and has the ability to take infrared and visual photos and record video with audio (voice annotations).

Features

  • 160 x 120 infrared resolution (19,200 pixels)
  • 3.5″ color TFT LCD touch screen with sun visor
  • Built-in laser and white LED flashlight
  • Video recording with voice annotations
  • 4 image modes (infrared/visual camera/infrared overlay/picture in picture)
  • Choice of 6 color palettes
  • Expandable memory (Micro SD)
  • Rechargeable li-ion battery
  • Tripod mountable for continuous long-term monitoring
  • Low battery indicator and auto shut off

REED R2100 Specifications

Imaging and Optical
Field of View (FOV) 29.8 x 22.6°
Minimum Focus Distance 0.2m (0.66′)
Spatial Resolution (IFOV) 3.33 mrad
Thermal Sensitivity (NETD) <0.08°C (80mK)
Image Capture Frequency 50Hz
Focus Manual
Measurement
Temperature Range Low Range: -4 to 302°F (-20 to 150°C)
High Range: 32 to 752°F (0 to 400°C)
Accuracy ±3.6°F (2°C) or ±2% of reading
Resolution 0.1 or 1°F/°C
Detector
Detector Type Uncooled microbolometer, Focal plane array (FPA)
Spectral Range 8 to 14ÎĽm
IR Resolution 160 x 120 (19,200 pixels)
Image Presentation
Display 3.5″ color TFT touch screen
Image Modes IR image, visual image, picture in picture
Picture in Picture IR area on visual image or visual image area on IR
Color Palettes 6 (Gray / Gray Inverse / Iron / Iron Inverse / Rainbow / Feather)
Measurement Analysis
Spot Meter 3
Emissivity Adjustable (0 to 1.00)
Line 2 lines (horizontal and vertical)
Area 3 boxes with max/min/avg
Automatic Hot/Cold Detection Auto hot or cold spotmeter markers
Isotherm Detect high/low temperature/interval
Measurement Corrections Emissivity, ambient temperature, distance, relative humidity, offset temperature
General Specifications
Zoom 20x continuous, digital zoom
Digital Camera Yes (640 x 480 resolution)
Image Format JPEG on memory card >1000 pictures
Video Out Composite (PAL and NTSC)
Video Format MPEG-4, 640Ă—480 @ 30 FPS on memory card >60 minutes
Video Camera and Annotations Yes
Laser Indicator Yes
LED Flashlight Yes
External Memory 4GB micro SD card
Auto Shut-off / Sleep Mode Yes (user adjustable)
Tripod Mountable Yes
Low Battery Indicator Yes
Power Supply 7.4V rechargeable lithium battery
Battery Life Approx. 4.5 hours
Charging System In Camera or with AC Adapter
PC Connectivity USB Cable
Software Yes (Included)
Software OS Compatibility Windows XP / 7 / 8 / 10
Supported Languages English, Chinese, French, German, Spanish
Laser Class II
Product Certifications CE, IP65, 6.6′ (2m) drop test
Operating Temperature -4 to 122°F (-20 to 50°C)
Storage Temperature -40 to 158°F (-40 to 70°C)
Operating/Storage Humidity Range 10 to 90%
Dimensions 9.6 x 4.1 x 6.3″ (243 x 103 x 160mm)
Weight 2.1lbs (920g)

Ideal Applications for the REED R2100

  • Home and Building Inspection
  • Plant and General Maintenance
  • Electrical and Mechanical Inspection
  • Predictive Maintenance
  • HVAC/R & Plumbing
  • Equine & Veterinary
  • Road Construction

Included with the REED R2100

  • Thermal Imaging Camera
  • 7.5mm Lens and Cap
  • Micro SD Memory Card
  • Video Output and USB Cable
  • Headset
  • Hood
  • Tripod Adapter
  • Shoulder Strap
  • Two Rechargeable Batteries
  • AC Adapter
  • Software
  • Hard Carrying Case
