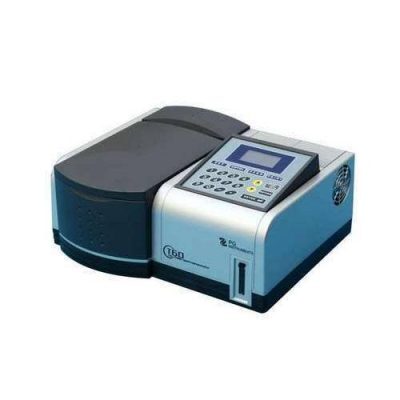

UV/VIS Spectrophotometer T60 & T80 Series, ESMC, PG Instruments, UK

UV/VIS Spectrophotometer T60 & T80 Series, ESMC, PG Instruments, UK

0.00৳

The T60 UV/VIS is a split beam UV Visible Spectrophotometer with a fixed slit of 2nm, providing the functionality of an advanced instrument at an affordable price. The instrument covers a wavelength range of 190-1100nm. The T60 UV/VIS has a small footprint and includes UVWin 5 software offering photometric measurement, kinetics measurement, quantitative measurement, spectrum scan, and DNA/Protein analysis. The user friendly control software also offers many other applications such as access to data base, three-dimensional spectral analysis, GLP laboratory protocol, fast analysis of pesticide residues, drug, food, etc., required for environmental analysis. The system is supplied with an eight-position motorized cell holder as standard. The T60 UV/VIS boasts a performance comparable to larger and more expensive machines. It is designed for a wide range of applications, industries, sample sizes, and types.

Features

Low Stray Light: stray light below 0.05%T
Excellent Stability: superior material makes it stable and durable
User Friendly Design: easy-to-use and simple maintenance
UVWin 5 Software with Powerful Functions and User Friendly Operations:
four regular functions:  photometric measurement, kinetics measurement, quantitative measurement, spectrum scan
3D presentation by combining multiple spectra
DNA/Protein analysis
Hardware and Software Easily Updated:
pre-programmed application cards to perform analysis such as DNA/Protein,  photometric, kinetics, etc., can be easily inserted by the user
the cell compartment is easily opened to allow other accessories to be used
system is easily interfaced to a PC via a standard RS232 interface, and can be easily interfaced to many different printers

Specifications

Optical system The split beam monitoring ratio system
Detector Photodiode
Light source Deuterium lamp and tungsten halogen lamp
Spectral bandwidth 2nm
Wavelength range 190-1100nm
Wavelength accuracy ±1nm
Wavelength repeatability ≤0.2nm
Stray light ≤0.05%T
Photometric range -0.3-3.0Abs
Photometric accuracy ±0.002Abs (0-0.5A)
±0.004Abs (0.5-1A)
±0.3%T (0-100%T)
Photometric repeatability ≤0.001Abs (0-0.5A)
≤0.002Abs (0.5-1A)
≤0.15%T (0-100%T)
Noise ±0.001Abs (500nm, peak-peak), half an hour warm-up
Drift ≤0.001Abs/h (500nm, 0Abs), 2hr warm-up
Baseline flatness ±0.002Abs (200-1000nm)
Interface, port RS-232
Display Backlight digital LCD
Monochromator Grating-based
Sample chamber Eight-position cell holder
Electrical requirements 110V, 50/60Hz
Dimensions (L×W×H) 476mm×362mm×225mm
Weight 11kg

Product Details

Standard Accessories Include: UVWin 5 software, PCMCIA program card, Eight-position motorized cell holder, 10mm quartz cells (2x), Black block for dark current correction, Power cable, 2A fuse, Dust cover, Operation manual, Calibration and system documentation.
CE Marked, ISO Compliant.
1-Year Manufacturer’s Warranty.

Images are reference only. Actual product may be different.
